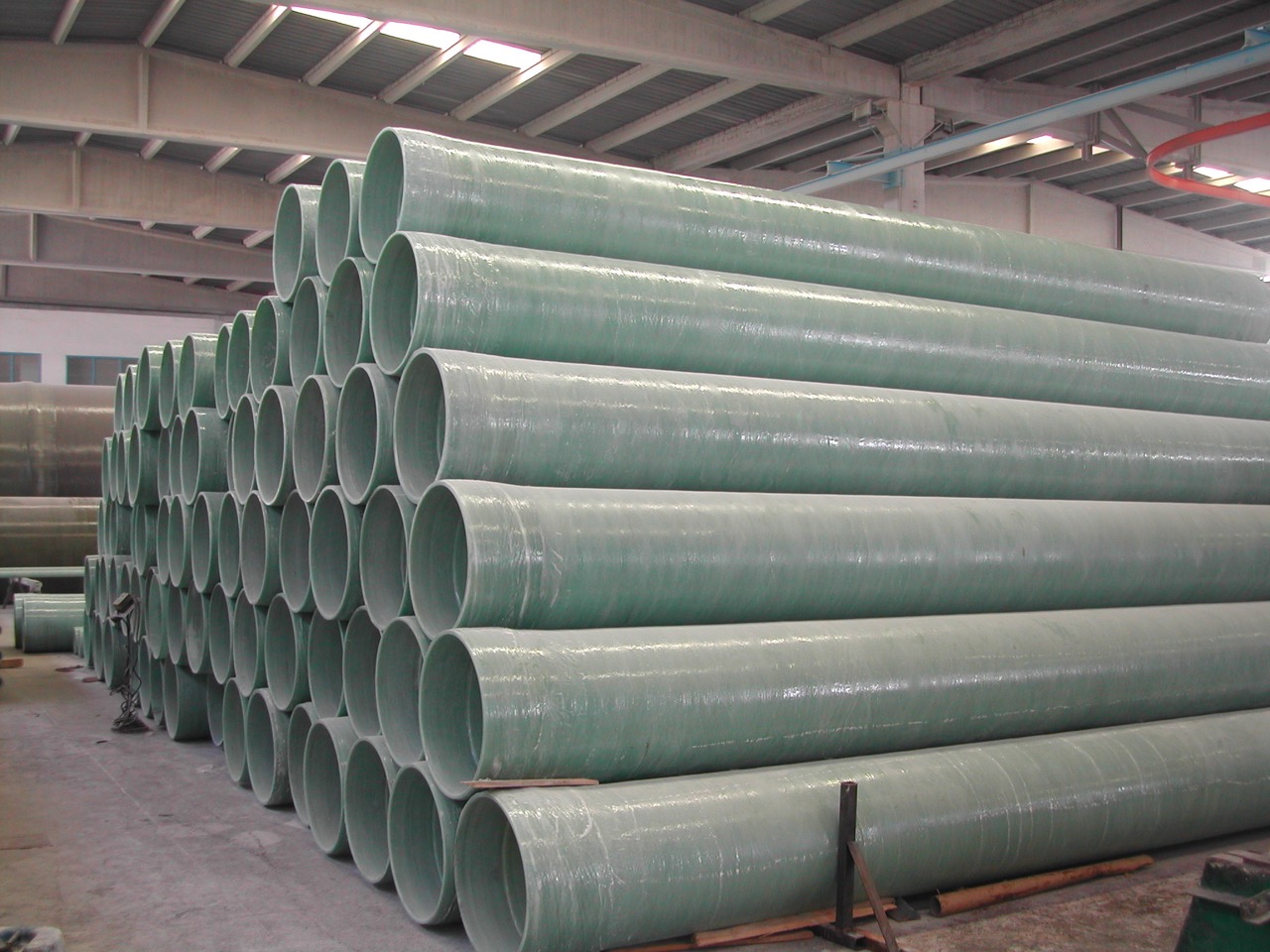

FRP Pipe
It is manufactured with the cross/radial filament winding method using glass fiber and thermoset resins.
| Product code : | |
| Category : Frp pipe | |
| Labels : | |
| Stock : | In stock |
Main Standards
- ASTM-AWWA-API-BS-DIN and ISO
Pipe Product Sizes
Ranging from 25mm to 4000mm.
Pressure Class
Standard Production
- Up to Pn 16 barg for diameters from 25mm to 300mm
- Up to Pn 10 barg for diameters from 350mm to 600mm
- Design up to 150 barg for larger sizes.
Hardness Class
Standard 2500-5000-10000 Pa
Temperature Design
EPI-DUR™: Epoxy resin (w/Aromatic-MDA Hardener) Base pipe = 150°C
VIN-DUR™: Vinylester resin (Bisphenolic-Novalac) Base pipe = 120°C
ISO-DUR™: Polyester resin (Isophthalic) Base pipe = 70°C
F-DUR™: Furan resin (Furan) Base pipe = 110°C
ComPlast™: Fluoro & Thermoplastic Liner Pipe = 240°C
Joining Type
Butt (hand laminate) type
- From 25mm to 300mm
Adhesive Bonding Coupling Type
- Double “O” ring (Bell & Spigot or Coupling) type
- Double “O” ring (Bell & Spigot or Coupling) Key-Lock type
- From 25mm to 300mm
Standard Length
- 25 mm – 65 mm = 4 meters long
- 80 mm – 3000 mm = 6 meters long (up to 12 meters)
